What is the mechatronic unit on a Land Rover LR4?

The mechatronic unit is ZF's integrated valve body and solenoid assembly inside the transmission. It controls all shift solenoids and pressure regulators. It is serviced as a complete assembly - individual solenoids are not separately replaceable.

Can water damage the LR4 transmission?

Yes - water ingestion through the mechatronic wiring harness is a known issue on LR4 models used for off-road fording. Water in the mechatronic causes solenoid corrosion and limp mode. The harness connector location and sealing were improved on later models.

Is the ZF 8-speed more reliable than the 6-speed in the LR4?

Generally yes - the 8HP70 has a stronger mechatronic design and is less prone to the sudden complete failure seen on some 6HP28 units. The 8HP70's main vulnerability is torque converter shudder, which is less catastrophic and more repairable.

How much does an LR4 transmission rebuild cost in Arlington Heights?

Full rebuild: $3,800 - 5,500. Remanufactured unit installed: $5,000 - 7,000. If only the mechatronic has failed, that repair is $1,400 - 2,300 and avoids a full rebuild in many cases.

How often should I service the LR4 transmission?

ZF specifies Lifeguard 6 and 8 ATF - with full fluid exchange every 50,000 - 60,000 miles. For Arlington Heights city use and any off-road driving, we recommend service at 40,000 - 45,000 miles. ZF transmissions are sensitive to degraded fluid.

Land Rover LR4 Transmission Repair in Arlington Heights

An LR4 driveline complaint needs the ZF transmission, transfer case, differentials, air suspension behavior, leaks, and vehicle age reviewed together before a major quote makes sense.

Get Free Diagnostic Call 847-393-0191 Text

Free Diagnostic

How can we help you?

Send the LR4 year, mileage, warning messages, 4WD symptoms, leak history, vibration details, and whether the issue appears on shifts, turns, or highway driving.

2-Year / 24K Rebuild Warranty

Clear Diagnosis | Written Estimates

Arlington Heights Transmission Shop

Experienced Technicians

Free Towing within 15 Miles

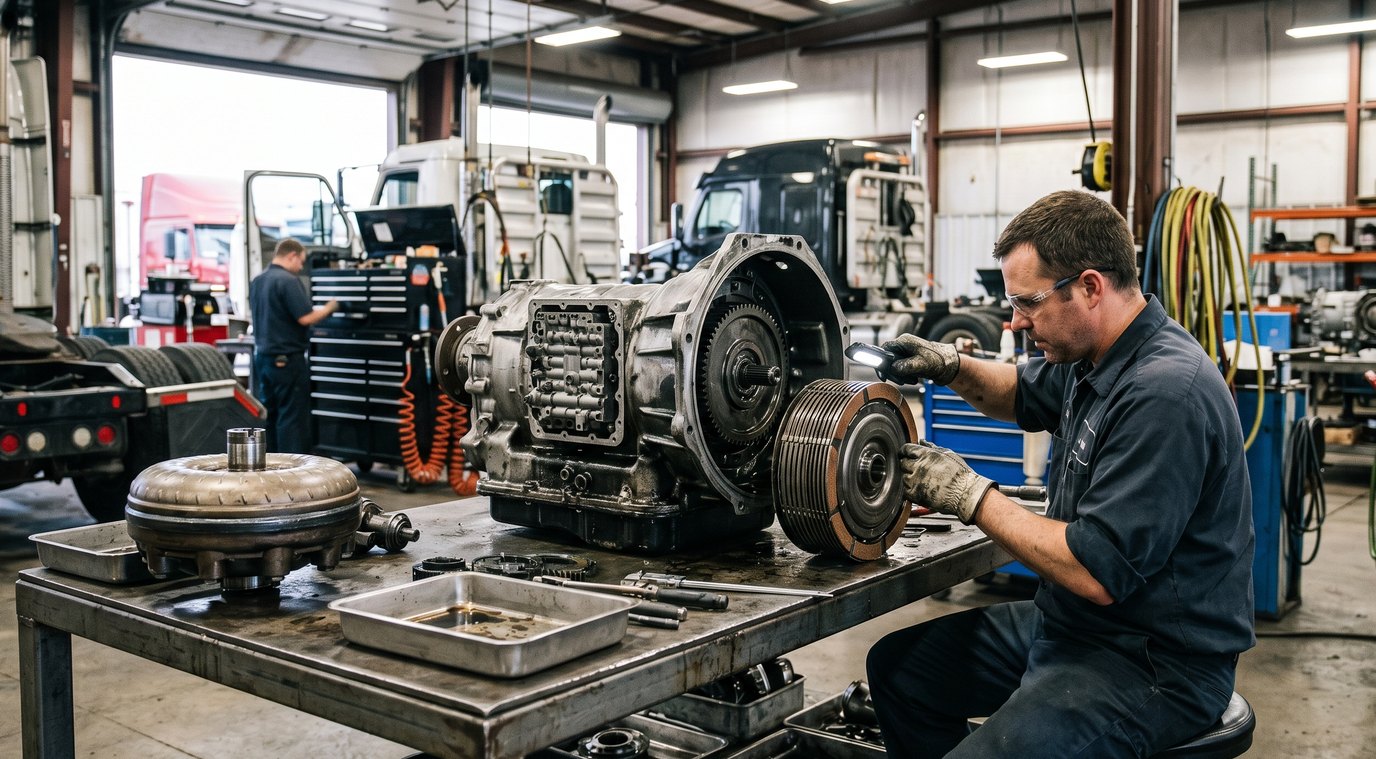

Land Rover ZF 6HP transmission diagnosis for Land Rover LR4 transmission repair in Arlington Heights

LR4

Land Rover LR4 Transmission Help for Arlington Heights Drivers

Land Rover LR4 transmission diagnosis should separate ZF automatic faults from transfer case, differential, driveshaft, suspension, cooling, software, and terrain-response behavior. LR4 repair decisions should come from scan data, fluid evidence, and a driveline road test, not a single generic replacement quote.

LR4 symptoms can involve delayed engagement, harsh shifts, flare, converter shudder, transfer-case bind, driveshaft vibration, ratio faults, solenoid codes, overheating, adaptation complaints, or AWD and terrain-response warnings.

The point of the inspection is to prove whether the issue is fluid, software, pressure control, clutch, converter, mount, driveline, valve body, internal wear, rebuild, or replacement work before an expensive repair is approved.

Get Free Diagnostic

Warning Signs

When to Schedule LR4 Transmission Diagnosis

These symptoms need evidence before parts are ordered. Fluid condition, codes, road-test timing, and driveline clues keep the estimate honest.

Delayed engagement, harsh shift, flare, shudder, or limp mode
Transfer-case bind, driveshaft vibration, axle/differential clue, or suspension/terrain-response warning
Tow/load history, off-road use, overheating, leak evidence, or unknown fluid service
Stored ZF, ratio, converter, solenoid, temperature, transfer-case, ABS, or terrain-response codes
Replacement quote before scan data, adaptation review, fluid evidence, and driveline inspection

Text the Shop

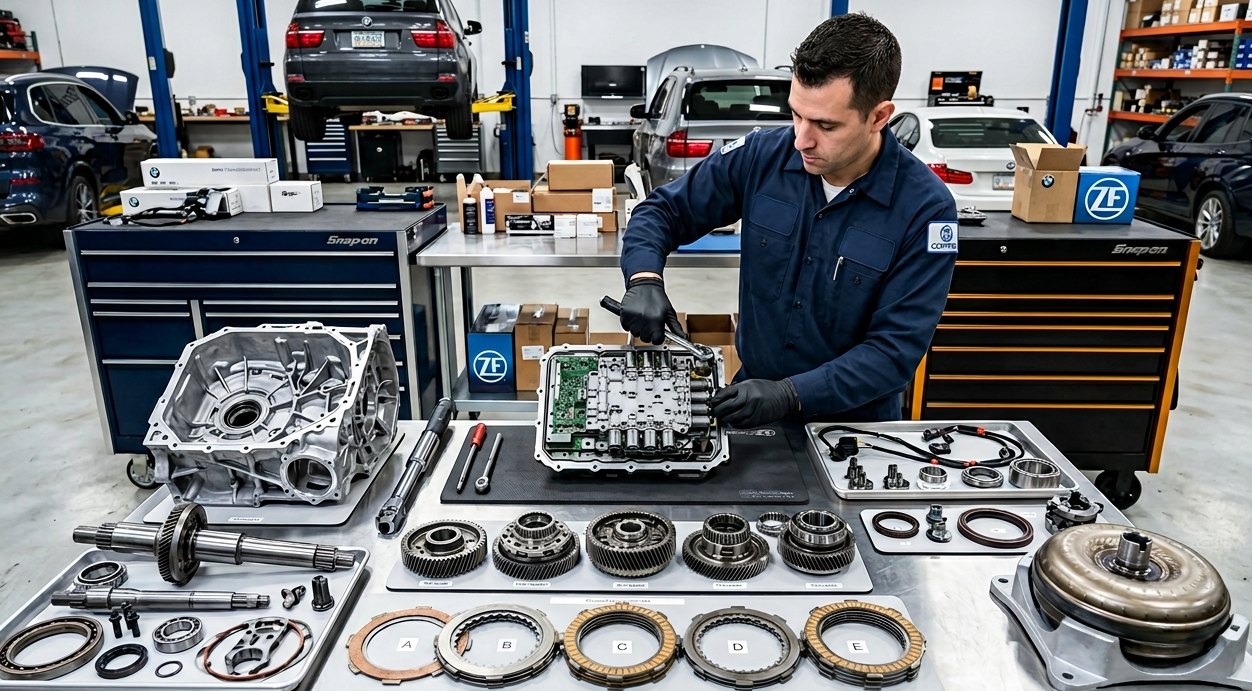

ZF transmission rebuild bench inspection for Land Rover LR4 repair planning

Our Process

How We Diagnose the Right LR4 Repair

Confirm LR4 year, engine, transmission family, mileage, towing/off-road use, service records, and exact symptom timing.
Scan Land Rover powertrain, transmission, transfer case, ABS, suspension, and terrain-response modules for current and history codes.
Inspect fluid evidence, leak points, cooler performance, mounts, driveshafts, axles, transfer-case clues, wiring, and road-test behavior.
Compare adaptation/software, service, sealing, converter, mechatronic, transfer-case, driveline, rebuild, used, remanufactured, and replacement paths.

If the evidence points to a related system instead of the transmission itself, we explain that before recommending transmission work.

LR4 Service Conversations

What We Help You Sort Out

A useful estimate should explain what failed, what can wait, what protects the vehicle, and how the repair path compares with replacement.

Symptoms

We document when the symptom appears, whether it changes warm versus cold, and whether the complaint sounds like shift control, clutch, converter, AWD, mount, or internal wear.

Inspection

Scan data, fluid evidence, leak checks, mount inspection, road-test notes, and service history keep the recommendation grounded.

Repair path

The written estimate separates fluid service, software, valve body, clutch, converter, driveline repair, rebuild, used unit, reman unit, and replacement options.

Pricing Guidance

Land Rover LR4 Transmission Repair Cost Guidance

These are planning categories only. The final estimate depends on model year, transmission family, AWD status, parts availability, programming needs, fluid evidence, and what testing finds.

Diagnostic: free
Fluid service, leak, solenoid, mount, clutch, or external repairs vary by model
Valve body, converter, dual-clutch, software, and AWD-related work is quoted after testing
Rebuild, used unit, remanufactured unit, and replacement options are compared with warranty and downtime explained

FAQ

Common Questions

The cost depends on the vehicle, transmission family, AWD status, parts availability, programming needs, and what testing finds. We provide a free diagnostic and written estimate before repairs begin.

No. Codes need to be matched with live data, fluid evidence, leak checks, road-test behavior, and related-system inspection.

Not unless the evidence supports it. We separate targeted repair, rebuild, used, remanufactured, and replacement paths before recommending the expensive option.

Yes. Text 847-393-0191 with the model, year, mileage, codes, warning text, leak history, and when the symptom happens.
